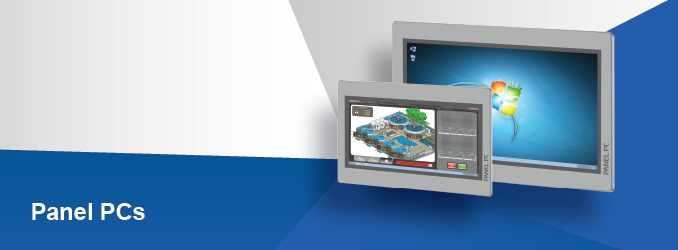

HMI: Panel PCs 2729 views
The combination of industrial PC with state of the art performance features and a Touch Panel with ideal display capabilities enables the user to concentrate high performance into the smallest space. The latest Intel Atom processor technology, large integrated work memory and display resolutions of up to Full HD with the 21.5" panel PC are state of the art. The panels have also numerous useful interfaces just like other VIPA Touch Panels. The pre-installed operating systems Windows Embedded Compact 7 or Windows Embedded Standard 7 are state of the art in the PC world. For visualization your own programs or optionally the latest pre-installed Movicon visualization can be chosen.
Display size: 10.1" wide (16:10), 15.6" wide (16:9) und 21.5" wide (16:9)
Display resolution: 1280x800 (10.1"), 1366x768 (15.6") und 1920x1080 (21.5")
Display type: PCAP, Multitouch
Housing: metal
Processor: Intel Atom D2550 dualcore@1,86 GHz
Interfaces: 2x Ethernet (10/100/1000), 4x USB 2.0, 2x serial (RS232,RS422/RS485), Audio out
Memory: work memory 2GB
Operating system and user memory: 16GB mit WES7, 2GB mit WEC7
Memory card slot: CFast
Operating system: Windows Embedded Compact 7 oder Windows Embedded Standard 7
Visualization: optional Movicon 11 CE Standard pre-installed
Vector graphics editor with powerful and clear symbol library
Comprehensive I/O driver library (variables import from the PLC possible)
Efficient alarm management
Multi-lingual language support
Disturbance and operating data acquisition
Archiving process data with trend curves
Comprehensive driver library
Project scalability of Movicon basic systems to Movicon SCADA platform
Secure and comprehensive user management
Remonte management for project planning and remote maintenance
Remote access via standard VCN client possible
Integrated Ethernet TCP/IP networking
Integrated IL logic (STEP5/STEP7)
Also deployable, of course, in combination with many controllers of other producers
